Automatic high-speed one-time tin dipping machine
  • Detail

Product video
Product video
Design scheme theory
Design scheme theory
  1、The scheme design of the equipment has been able to meet the product requirements of your company
  2、Each structure of the equipment is fixed and installed by positioning pin and positioning screw. The positioning accuracy is high, easy to replace and convenient.
  3、Due to the full consideration of product diversification in the design of equipment, the calculation method of capacity is based on the time required for single lead pressing insertion.
  4、The feeding and receiving are both manually operated, and the product feeding is automatic feeding.
Equipment features
Equipment features
  1、The overall design and installation quality of the equipment meet the relevant national specifications, the equipment is beautiful in shape, the structure is reasonable in workmanship and installed in place according to the standard process. It is easy to operate, safe and labor-saving, with clear and complete signs.
  2、The equipment has good and comprehensive safety protection measures, and the mechanical parts such as drive belt, shaft, drive chain, coupling and gear are equipped with safety protection covers.
  3、Using Mitsubishi servo control positioning accurate transmission speed, long life, stable operation.
  4、The new industrial control intelligent computer, the man-machine interface operation is simple, the fool type operation.
  5、The equipment is equipped with abnormal shutdown alarm function, and the real-time alarm situation is displayed on the touch screen in real time. It has the function of fault self diagnosis.

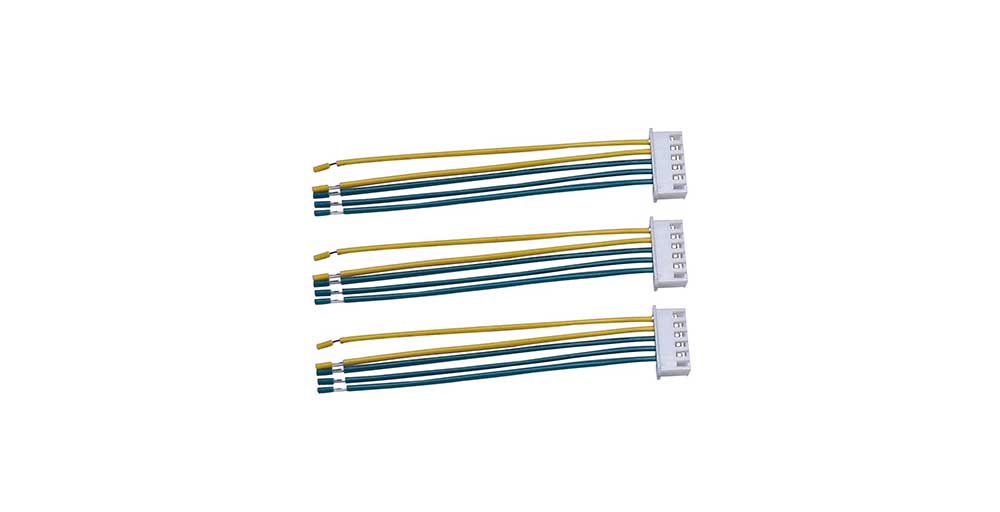

Sample display
Sample display
Product parameters
Product parameters




Wire cut off, both ends peeled, one end pressedOne end is put through the shell and twisted with tin

Wire size

AWG × 20 × 28 (wire OD ∮ 2.5m and below)

Wire color

Optional 2-10

Wire cut length

10 sp;m-1000 m(0.1 m m21333m;)

Cutting length accuracy

Tolerance 0.1 mm+

Peeled length

1.0 mm — 10 m m

Peeling length accuracy

Tolerance ± 0.1 m m m

Press machine

19600n (Servo Press)

Pressing stroke


Universal press

Universal OTP press

Detection and installation

Low pressure, whether the wire is detected, whether the pressing error is detected, whether the terminal is detected, and whether the terminal is insertedCCD detection (optional)、Pressure sensing device(optional)

production efficiency

4000PCS/H~6000PCS/H  (single lead calculation)

control mode

Single chip microcomputer control

Internal control voltage


Power Supply

single-phase ~AC200V/220V  50HZ  10A

compressed air


Operating temperature range

15 ℃ - internal 30 ℃

Operating humidity range

30% - 80% RH & nbsp; no condensation

Guarantee period

2000 time or 1 year (excluding consumables)

Mechanical quality

About 500kg

plant and equipment
plant and equipment
Professional automatic terminal machine equipment
