Automatic wire harness processing equipment
Automatic wire harness processing equipment
+86 13825719270
|
|
Product Video
Product video Main Configuration
Main Configuration
1. Motion control card
2. Servo (3 sets): Mitsubishi 3. Control system stepper motor (18 sets): Xuquan 4. Control system stepper motor driver (18 sets): Sifu Dianzi 5. Touch screen: Buke (Kinco) 6. Cylinder: Taiwan Yadeke (AirTAC) 7. Solenoid valve: Aike Intelligent 8. Belt: Ouyite 9. Slide rail: Aibosi Feature Description
Feature Description
1. Equipment composition: Mainly adopts Taiwan and Japan brand-name original components, completing functions such as wire cutting, stripping, and terminal crimping, with precise action and stable performance.
2. Wire feeding mechanism: The main machine has a built-in four-wheel synchronous wire feeder, constantly maintaining wire tension; equipped with an automatic terminal carrier tape cutting device. 3. Control system: Controlled by the main machine's motion control card, with Chinese/English touch screen parameter setting, short adjustment time and easy operation. 4. Compatible molds: Suitable for horizontal-feed and straight-feed OTP terminal molds. 5. Equipment advantages: Energy-saving, space-saving, and environmentally friendly equipment. Function & Appearance Introduction
Function & Appearance Introduction

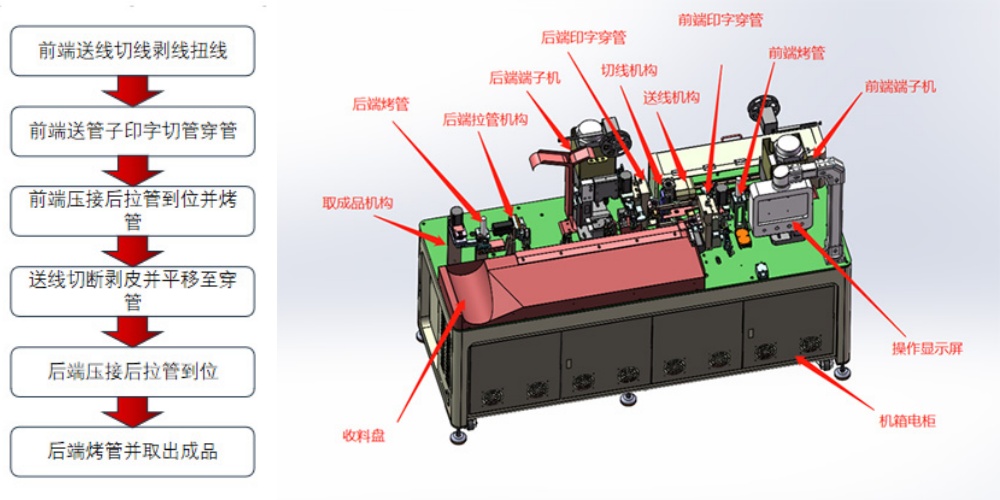

1. Scheme description: Wire cutting and stripping with both-end riveting, number tubes printed (printing can be laser marking or thermal transfer), number tubes inserted, and number tubes heat-shrunk.
2. Function introduction: Wire cutting, single-end stripping, both-end stripping, both-end crimping, both-end crimping and heat-shrunk number tubes. Equipment Product Introduction
Equipment Product Introduction
Product Parameters
Product parameters
|
