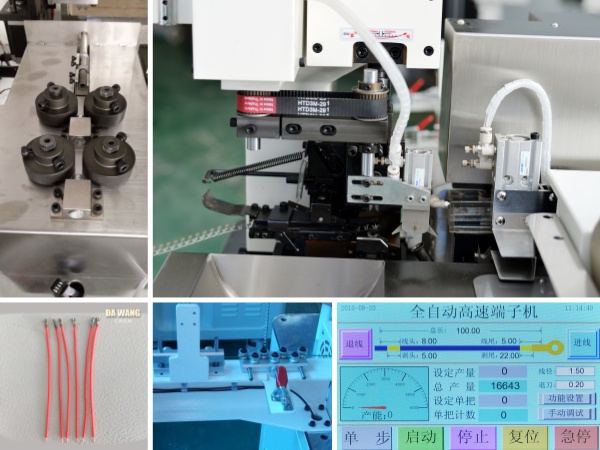

Model:

DWGS11+T

Power Supply:

AC220V/50/60HZ single phase

Function:

Wire cutting, single-end stripping and twisting, single-end crimping

Production Capacity:

4200 pcs/hour (length within 300mm)

Wire Range:

AWG14—AWG28 (wire below 4 sq mm)

Cutting Length:

45mm----9999mm (special length can be customized)

Cutting Accuracy:

Variation range: within 1mm + cutting length * 0.2%

Stripping Length:

1.5mm-----10mm

Crimping Capacity:

2.0 ton (optional 2.5T terminal machine also available)

Air Pressure:

4----6kgf (clean dry air required)

Detection Device:

Wire presence detection, terminal air pressure presence detection, wire jam detection, air pressure detection

Machine Dimensions:

650W X 700L X 1500H (mm)

Machine Weight:

Approx. 308kg
