model:

DWGSTS

Power Supply:

AC220V/50/60HZsingle-phase

Function:

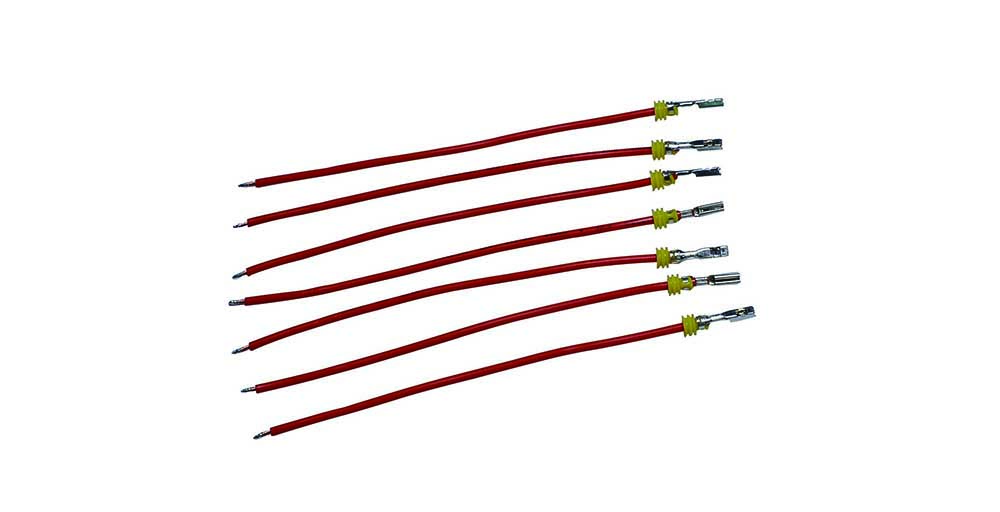

Wire cutting, single end peeling with tin, double end peeling, single end wearing waterproof bolt

Capacity:

2200 pieces / hour (within 100mm in length)

Machinable wire range:

AWG#28-AWG#14

Cut off length:

50mm----9999mm

Cut off accuracy:

Variation range: 1mm + cutting length * less than 0.2%

Peeling length:

1.5mm-----10mm

Holding capacity:

2.0T-3.0TTerminal machine

Air pressure:

4----6kgf(clean dry air is required)

Detection device:

Check whether there is wire, check whether there is terminal pressing, check whether there is wire blocking, check whether there is low air pressure

Body size:

700W X 800L X 1500H(mm)

Body weight:

约348kg
