Automatic terminal machine single head single pressure waterproof bolt
  • Detail

Product video
Product video
Equipment features
Equipment features
  1. Exquisite, compact design, excellent conception and small floor area.
  2. The Chinese operation menu of computer touch screen is easy to learn and understand.
  3. Change process and materials quickly.
  4. High efficiency step driving, high precision and high speed.
  5. Easy to maintain.
  6. High cost performance
  7. Full digital debugging

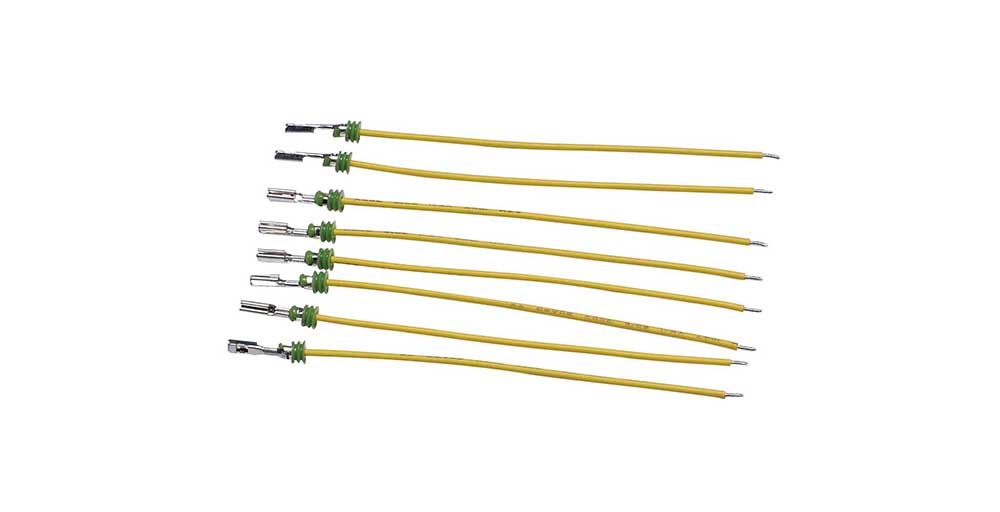

Sample display
Sample display
Product parameters
Product parameters

model:

DWGSF1

Power Supply:

AC220V/50/60HZsingle-phase

Function:

Wire cutting, single end peeling, double end peeling, single end wearing waterproof bolt

Capacity:

3000 pieces / hour (within 100mm in length)

Machinable wire range:

AWG#28-AWG#14

Cut off length:

50mm----9999mm

Cut off accuracy:

Variation range: 1mm + cutting length * less than 0.2%

Peeling length:

1.5mm-----10mm

Holding capacity:

2.0T-3.0TTerminal machine

Air pressure:

4----6kgf(clean dry air is required)

Detection device:

Check whether there is wire, check whether there is terminal pressing, check whether there is wire blocking, check whether there is low air pressure

Body size:

700W X 800L X 1500H(mm)

Body weight:

约348kg
