model:

DW3H

Power Supply:

single-phase AC200V~242V 50/60Hz 10A

Function:

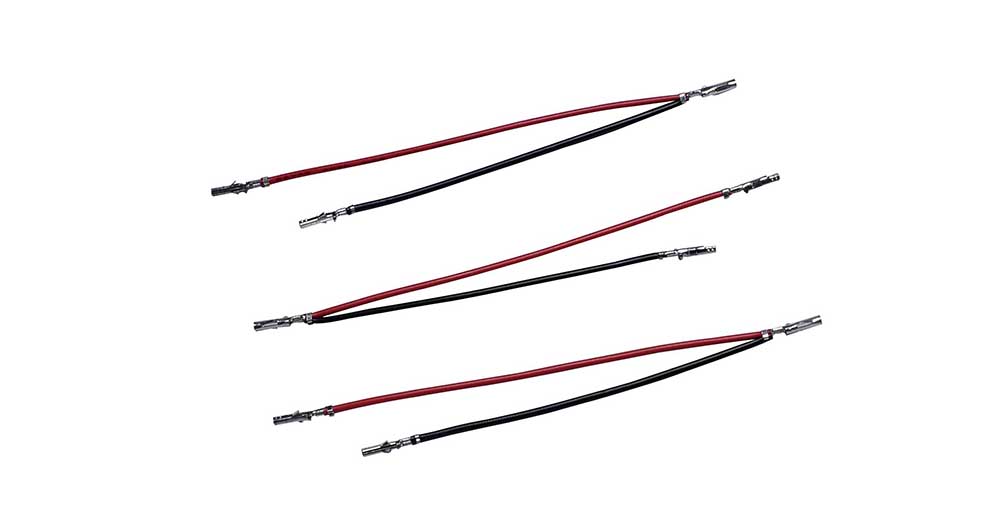

Wire cutting, single end peeling, two ends peeling, three ends pressing; peeling length / pressing position / knife depth can be set and adjusted

Capacity:

The length of wire is about 3000 pieces / hour for 50-100mm, and about 2500 pieces / hour for special wire (ultra-fine flexible wire)

Machinable wire range:

#30~#16 AWG

Cut off length:

Leave rubber in the middle 41mm ~ 9999mm (shorter if refitted)

Cut off accuracy:

Error 0.2 + (wire length x 0.002) error 0.5 + (wire length

Peeling length:

front end Zero point five ~ 8.0mm Back end Zero point one ~ 10.0mm

Holding capacity:

Maximum adjustment 5.50mm, resolution 0.01mm

Air pressure:

0.5 MPa(5kgf / cm2) Clean dry gas

Detection device:

Low air pressure, whether there is wire, abnormal pressure, abnormal incoming wire

Body size:

W 800 *D1400*H1800 mm

Body weight:

about600kg
