Equipment features
Equipment features
1. Exquisite, compact design, excellent conception and small floor area.
2. The Chinese operation menu of computer touch screen is easy to learn and understand.
3. Change process and materials quickly.
4. High efficiency step driving, high precision and high speed.
5. Easy to maintain.
6. High cost performance
7. Full digital debugging

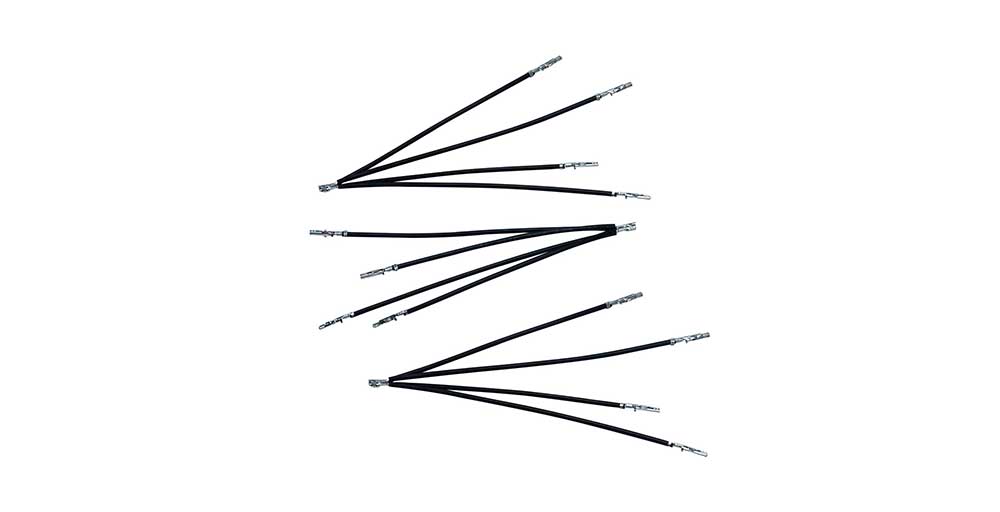

Sample display
Sample display
Product parameters
Product parameters
model: |
DW3H4F |
Power Supply: |
single-phase AC200V~242V 50/60Hz 10A |
Function: |
Wire cutting, single end peeling, two ends peeling, three / four wire bonding and the other end crimping are optional. The peeling length / pressing position / knife depth can be set and adjusted |
Capacity: |
About 1000 Wires / hour, 50-100mm long |
Machinable wire range: |
#28~#16 AWG |
Processing length: |
Leave rubber in the middle 41mm ~ 9999mm (shorter if refitted) |
Cut off accuracy: |
Error of wire length less than 100mm Zero point two +(line length x0.002 ）Error of wire length over 100mm Zero point five +(line length x0.002 ) |
Stripping Length: |
Front end 0.5-8.0mm back end 0.1-10.0mm |
Cutter depth: |
Maximum adjustment 5.50mm , resolution 0.01mm |
Air pressure: |
0.5 MPa(5kgf / cm2) Clean dry gas |
Detection device: |
Low air pressure, whether there is wire, abnormal pressure, abnormal incoming wire |
|
Body size: |
W 800 *D1400*H1800 mm |
Body weight: |
about600kg |
