Automatic double head terminal machine
  • Detail

Product video
Product video
Equipment features
Equipment features
  1. Exquisite, compact design, excellent conception and small floor area.
  2. The Chinese operation menu of computer touch screen is easy to learn and understand.
  3. Change process and materials quickly.
  4. High efficiency step driving, high precision and high speed.
  5. Easy to maintain.
  6. High cost performance
  7. Full digital debugging

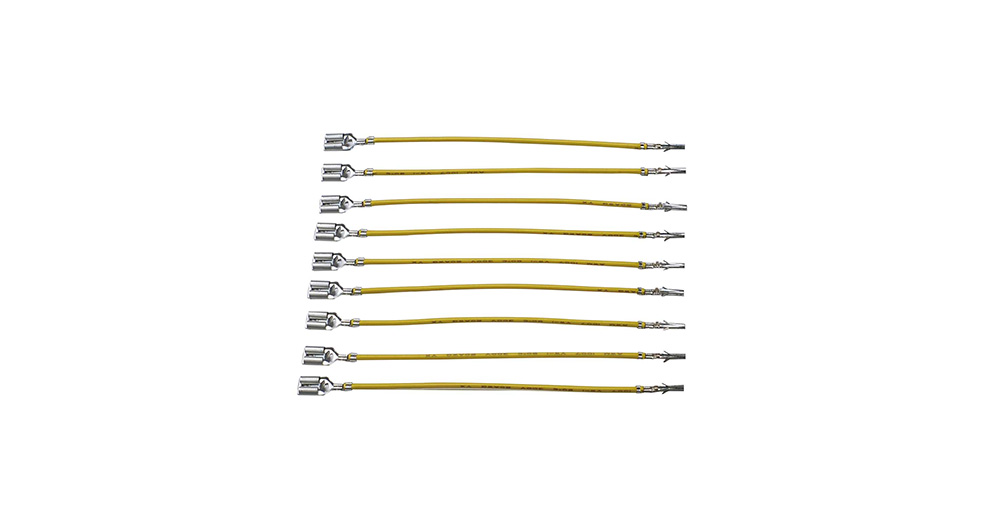

Sample display
Sample display
Product parameters
Product parameters

model:

DWGS12

Power Supply:

AC220V/50/60HZsingle-phase

Function:

Wire cutting, single end peeling, double end peeling, single end pressing, double end pressing

Capacity:

4000 pieces / hour (within 100mm in length)

Machinable wire range:

AWG × 28-awg × 10 (wire less than 4 square meters) 6 square meters customized

Cut off length:

45mm --- 9999mm (short line can be customized)

Cut off accuracy:

Variation range: 1mm + cutting length * less than 0.2%

Peeling length:

1.5mm-----10mm

Holding capacity:

2.0T terminal machine

Air pressure:

4 --- 6kgf (clean and dry air is required)

Detection device:

Optical fiber sensing, whether the wire is tested, whether the terminal is pressed, whether the wire is blocked, and whether the air pressure is low

Body size:

700W X 800L X 1500H(mm)

Body weight:

约358kg
