Equipment features
Equipment features
1. Exquisite, compact design, excellent conception and small floor area.
2. The Chinese operation menu of computer touch screen is easy to learn and understand.
3. Change process and materials quickly.
4. High efficiency step driving, high precision and high speed.
5. Easy to maintain.
6. High cost performance
7. Full digital debugging

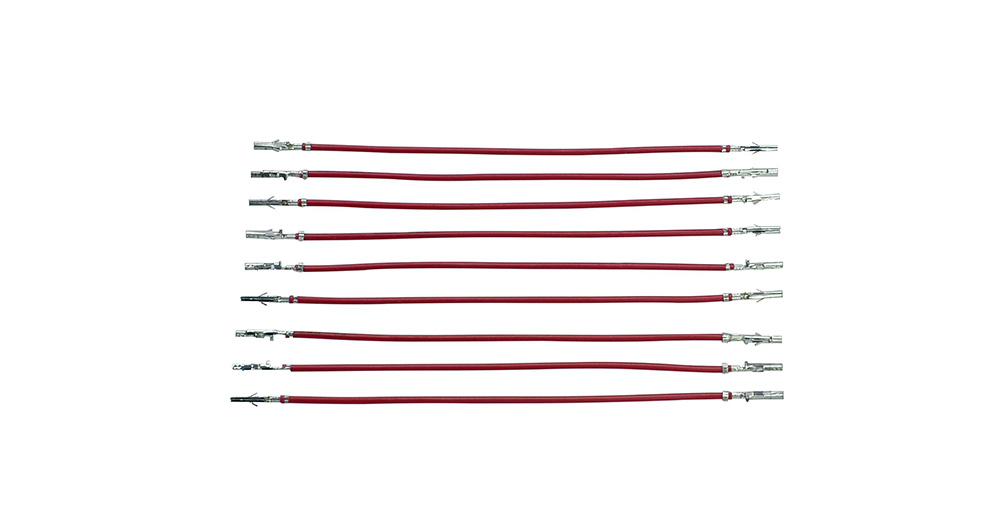

Sample display
Sample display
Product parameters
Product parameters
model: |
DWGS12X |
Power Supply: |
Single phase ac180v ~ 242v 50 / 60Hz 10A |
Function: |
Wire cutting, single end peeling, two ends peeling, two ends pressing, one end pressing and one end half peeling; peeling length / pressing position / knife depth can be set and adjusted |
Capacity: |
Wire length: 50-100mm, about 3800 / h (special wire production will be reduced) |
Cutter depth: |
Maximum adjustment 5.50mm, resolution 0.01mm |
Processing length: |
26mm ~ 9999mm for the middle part (shorter for refitting) |
Cut off accuracy: |
Error of wire length less than 100mm Zero point five +(line length x0.002 ）Error of wire length over 100mm One +(line length x0.002 ) |
Peeling length: |
Front end 0.5-8.0mm back end 0.1-10.0mm |
Holding capacity: |
0.5 MPa (5kgf / cm2) clean dry gas |
Air pressure: |
W 750 *D1000*H1800 mm |
Detection device: |
Low air pressure, whether there is wire, abnormal peeling, abnormal pressing, abnormal incoming line |
Body size: |
W 800 *D700*H1800 mm |
Body weight: |
about360KG |
