Equipment features
Equipment features
1. Exquisite, compact design, excellent conception and small floor area.
2. The Chinese operation menu of computer touch screen is easy to learn and understand.
3. Change process and materials quickly.
4. High efficiency step driving, high precision and high speed.
5. Easy to maintain.
6. High cost performance
7. Full digital debugging

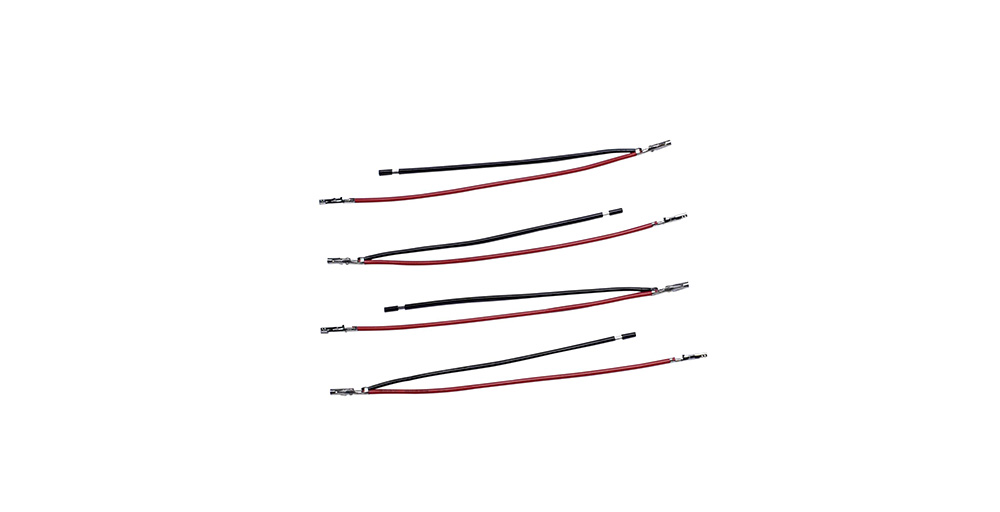

Sample display
Sample display
Product parameters
Product parameters
model: |
DWGS2H |
Power Supply: |
Single phase ac200v ~ 242v 50 / 60Hz 10A |
Function: |
Wire cutting, single end peeling, two ends peeling, two ends pressing, one end pressing one end half peeling; peeling length / pressing position / knife depth can be set and adjusted |
Capacity: |
About 3500 Wires / h for 50-100mm, and about 2500 Wires / h for special wire (ultra-fine flexible wire) |
Cutter depth: |
Maximum adjustment 5.50mm, resolution 0.01mm |
Processing length: |
Leave rubber in the middle 41mm ~ 9999mm (shorter if refitted) |
Cut off accuracy: |
Error of wire length less than 100mm Zero point two +(line length x0.002 ）Error of wire length over 100mm Zero point five +(line length x0.002 ) |
Peeling length: |
Front end 0.5-8.0mm back end 0.1-10.0mm |
Holding capacity: |
2.0T terminal machine |
Air pressure: |
W 750 *D1000*H1800 mm |
Detection device: |
Low air pressure, whether there is wire, abnormal pressure, abnormal incoming wire |
Body size: |
W 750 *D1000*H1800 mm |
Body weight: |
about500kg |
