model:

DWGS11+T

Power Supply:

AC220V/50/60HZsingle-phase

Function:

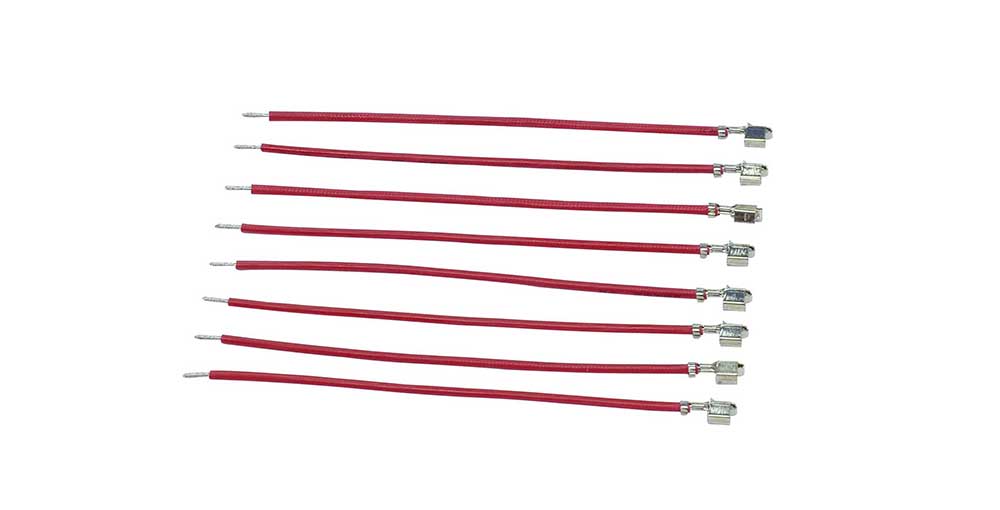

Wire double cut, single end peeling and twisting, single end pressing

Capacity:

4000 pieces / hour (within 100mm in length)

Machinable wire range:

AWG12—AWG28(wire diameter between 4.4mm and 0.8mm)

Cut off length:

45mm----9999mm(special length can be customized)

Cut off accuracy:

Variation range: 1mm + cutting length * less than 0.2%

Stripping length:

1.0mm-----15mm

Pressing power:

0.75KW

Air pressure:

4--6kgf(clean dry air is required)

Detection device:

Check whether there is wire, check whether there is terminal air pressure, check whether the wire is blocked and check whether there is air pressure.

Bare metal size:

650W X 700L X 1500H(mm)

Body weight:

约308kg
