model:

DWGS12J

Power Supply:

AC220V / 50 / 60Hz single phase

Function:

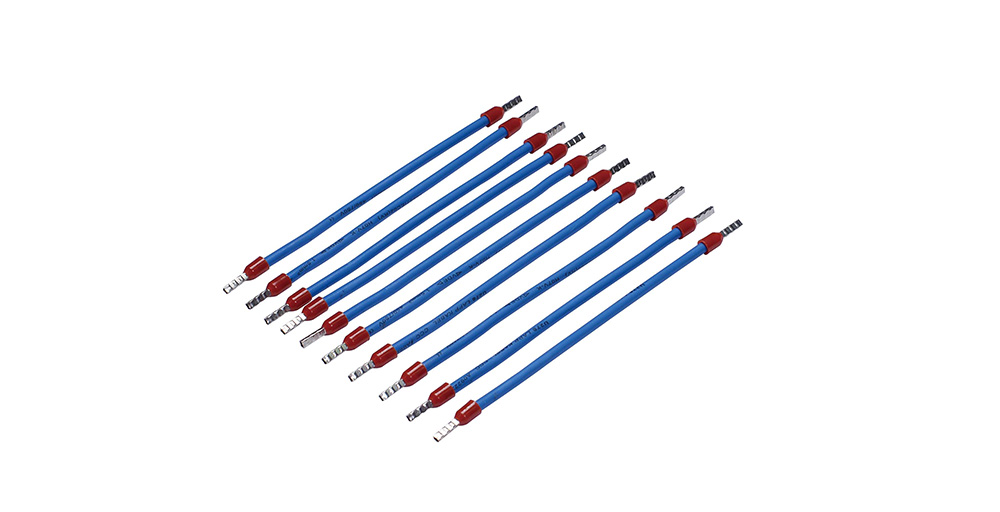

Wire cutting, single end peeling, double end peeling, single end pressing, double end pressing

Capacity:

1700 pieces / hour (within 200mm in length)

Machinable wire range:

AWG × 28-awg × 10 (wire less than 4 square meters)

Cut off length:

45mm----9999mm

Cut off accuracy:

Variation range: 1mm + cutting length * less than 0.2%

Peeling length:

1.5mm-----10mm

Holding capacity:

2.0T terminal machine

Air pressure:

4 --- 6kgf (clean and dry air is required)

Detection device:

Optical fiber sensing, whether the wire is tested, whether the terminal is pressed, whether the wire is blocked, and whether the air pressure is low

Body size:

700W X 800L X 1500H(mm)

Body weight:

约358kg
